Description

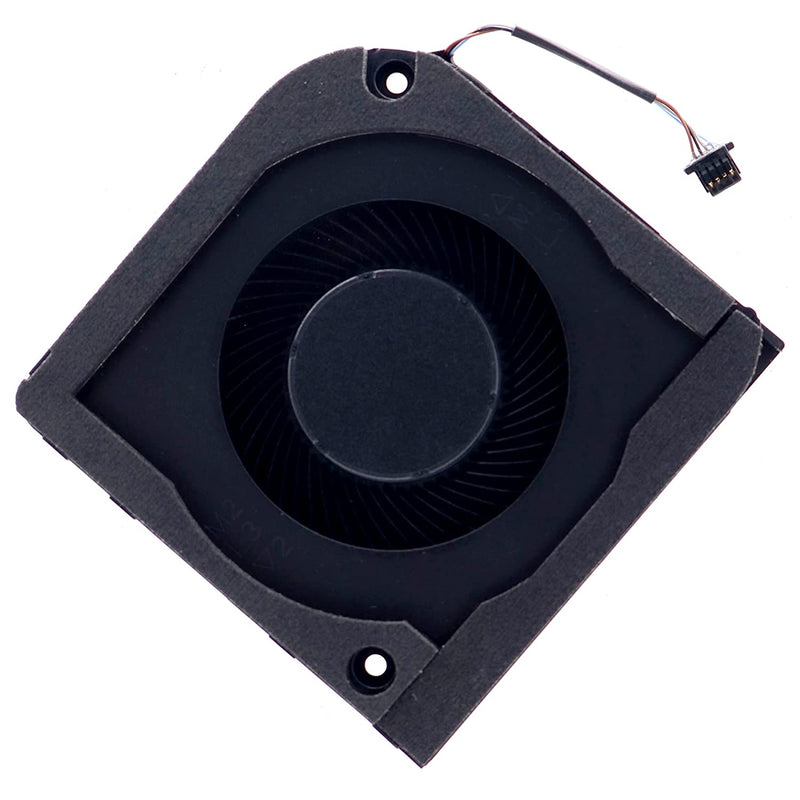

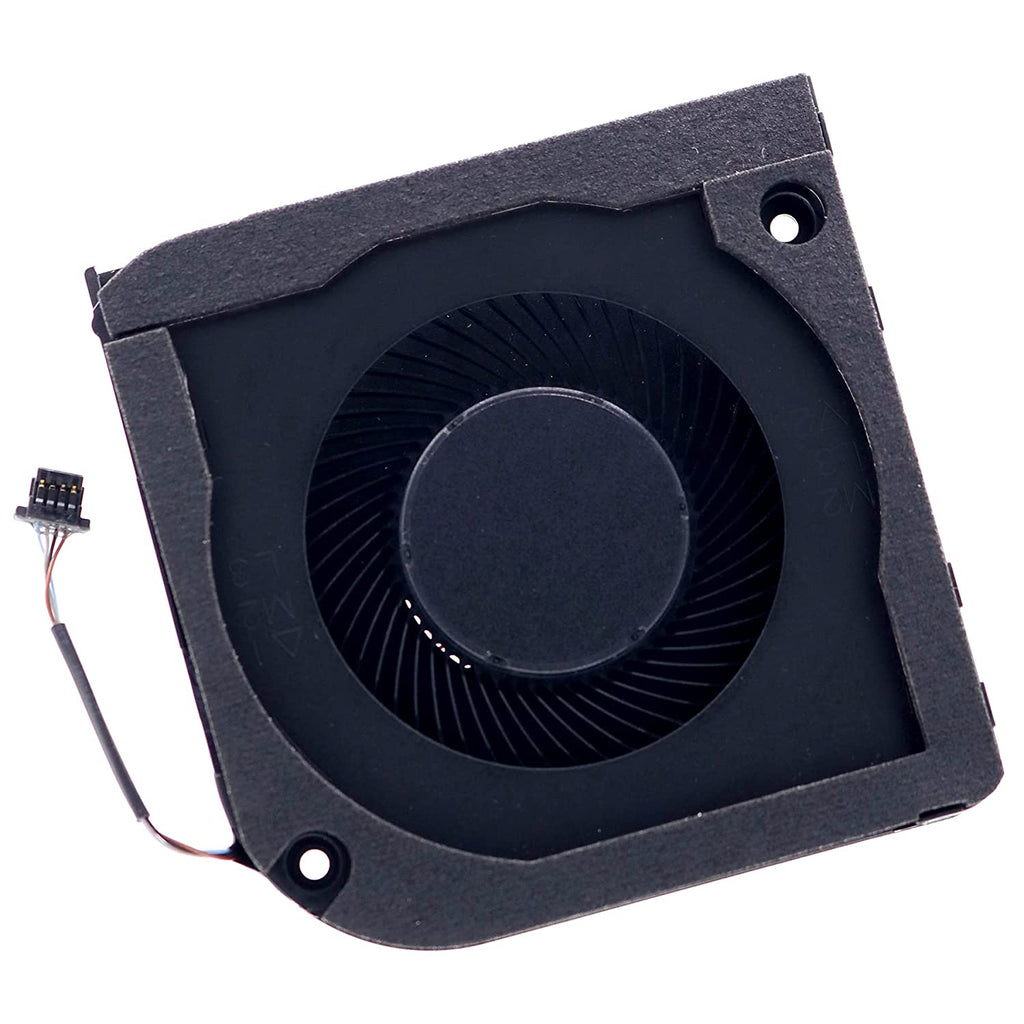

This is the CPU Cooling Fan for the Dell Latitude 15 5520 and Precision 3560 series laptop with U-type CPU processor, and with the integrated Graphics.
If your PC fan is running very loud or not functioning then a replacement may be needed.

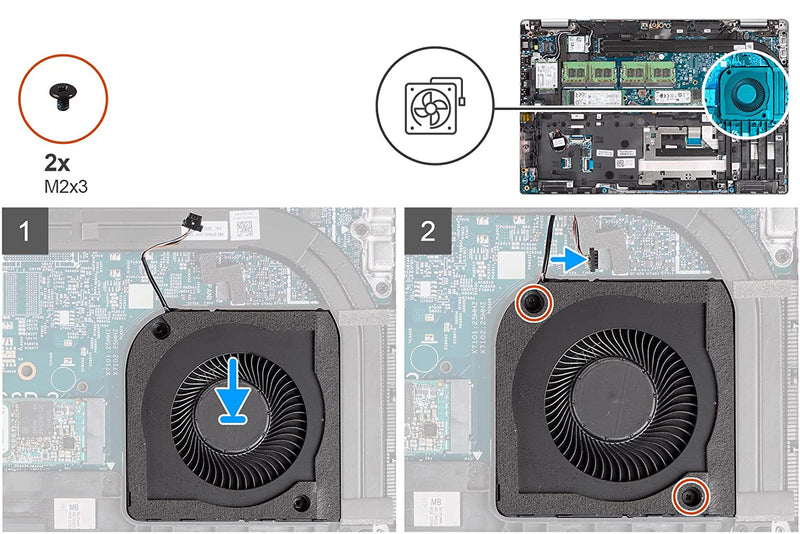

The fan uses an integrated flex cable to connect to the mainboard. The cable connects via 4-pin connector making it a plug and play replacement module, NO soldering is required, attaches to your existing heatsink.
D P/N: DXJNV, 0DXJNV, CN-0DXJNV
Manufacturer Part Number(s):

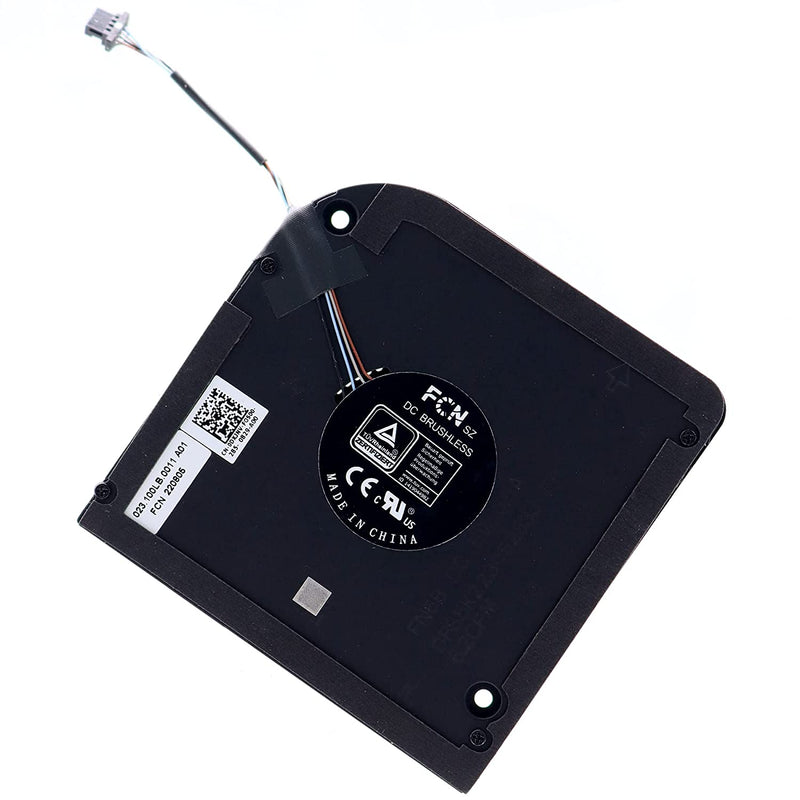

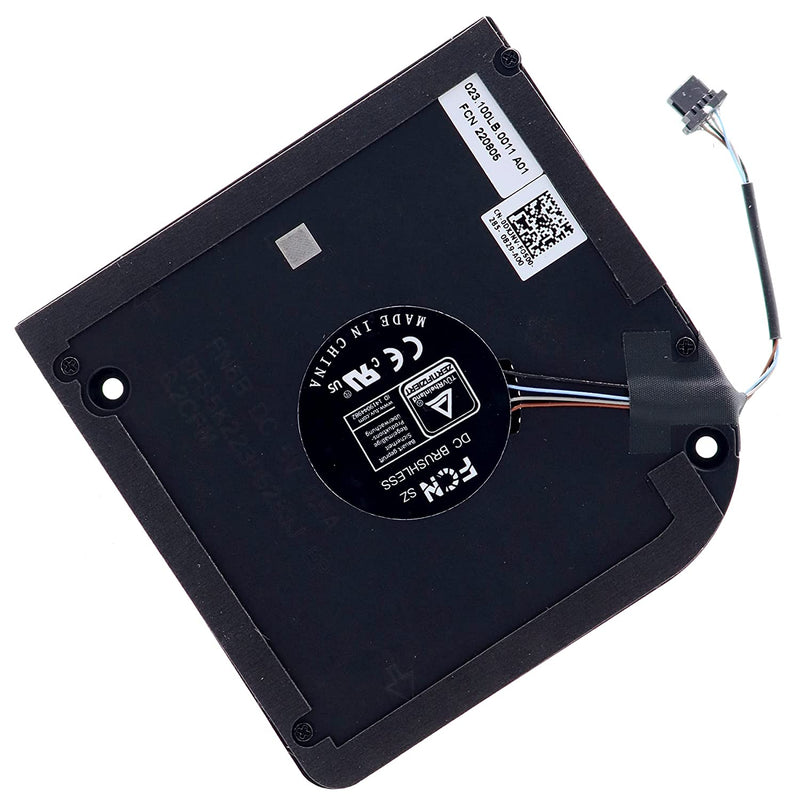

023.100LB.0001, EG50050S1-CH00-S9A, 023.100LB.0021, 023.100LB.0011, DFS5K22305283J FN6B, NS75C36-20E09
Specifications:
Direct Current: DC 5V / 0.38A or 0.5A, 5.1/6.2 CFM. REV: A01
Color: Black
Connection: 4-pin 4-wire, plug-in
Wire Length: 4.30 cm/1.70-inch
Reference list of compatible with Dell Laptop Models:
- Latitude 15 5520 (e5520)
- Precision 3560 (M3560)
What's in the Box
- 1x CPU Cooling Fan (NO thermal paste)
